Technology/Bands

• Tri-band HSUPA/HSDPA - 850/1900/2100 MHz
• Quad-band EDGE/GPRS - 850/900/1800/1900 MHz

Advanced Technologies

• Receiver Equalization - improves performance in noisy & highly mobile environments
• Receiver Diversity on HSDPA/UMTS 2100 MHz band - improves performance at cell edges and in buildings

Data Speeds

• Supports 7.2 Mbps Downlink
• available for HSUPA, providing 2.1 Mbps uplink speeds

Power Class

• WCDMA 850/1900 – Power Class 3
• WCDMA 2100– Power Class 3
• GPRS 850/900 – Power Class 4
• EDGE 850/900/1800/1900 – Power Class E2

Dimensions and Weight

• 70 x 25 x 12 mm
• 37g

Form Factor

• USB Dongle
• USIM* card slot (card size: 25 mm x 15 mm)

Visual Indicator (LED)

• Multi-colour LED indicator for real-time service status, technology modes, and error conditions

Antenna

• Built-in 5 bands (integrated)
• High efficiency broadband
• One piece with integrated antenna

Power consumption

• HSUPA/HSDPA - 1.0 amps (nominal)
• Voltage 3.0 v to 3.3 v
• Idle & low power modes (USB Selective Suspend)

Applications

• Internet, Intranet
• e-mail
• Connection logging
• VPN
• And others

Zero install, no CD

• Mobilink LiteTM in flash memory
• Generic modem, SIM unlocked

Connection Manager*

• Plug & Play
• Multi-lingual (software in 18 languages)
• Dialup Connection
• Signal strength
• Connection Status
• Auto-Connect
• Auto-Select Network
• NDIS & EAP-SIM Support
• Address Book
• Network Profile
• Help Menu & Self Diagnostics
• Field Test Data
• Complete Session Statistics
• SDK for minimal integration required for third party dashboards

Timers and Counters

• Data call duration
• Data byte count

Standards/Approvals/Certifications

• 3GPP Release 99 for GSM/GPRS
• 3GPP Release 5 for HSDPA
• FCC parts 2, 15, 22 & 24
• CE
• GCF
• PTCRB
• GSM Phase 2+
• Microsoft WHQL
• IOT Compliance
• R&TTE Directive 1999/5/EC (health, safety, EMC, spectrum) Compliant
• RoHS Directive 2002/95/EC Compliant
• WEEE Directive 2002/96/EC Compliant

Operating Systems Supported

• Windows® 2000, XP & Vista
• Mac OS X 10.4 Connection Utility
• Linux 2.6

Minimum System Requirements

• USB Slot 1.1 or 2.0 Full Speed Power
• Hard Drive: 14 MB
• Browser: Microsoft Internet Explorer 6.0 or higher

Standard Package Contents

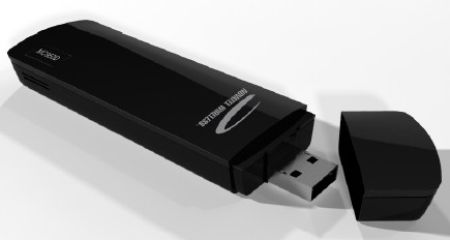

• Ovation MC950D Modem
• Quick Start Guide
• Monitor Clip
